Description
High-voltage long-string transmission for heavy commercial cycling.

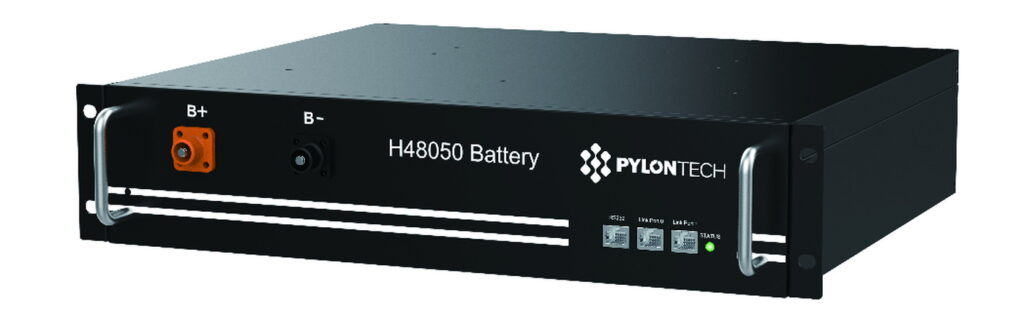

Pylontech H48050 is a 2.40 kWh high-voltage series rack-mount LFP battery module operating at 48 V nominal (50 Ah), engineered to build 240 V to 864 V high-voltage storage columns for Pylontech PowerCube-X1, X2, and H1 industrial systems.
High-Voltage Series Rack Architecture
Connects in long series strings (from 5 up to 18 modules) to build high-efficiency 240 V to 864 V DC commercial storage banks.
2.40 kWh / 50 Ah Industrial Prismatic LFP Cells
Proven commercial cell chemistry delivers over 6,000 cycles with high thermal stability and active cell balancing.
Standard 19-Inch Rack Form Factor (2U)
Slides neatly into PowerCube server-style cabinets with front-facing high-voltage DC terminals and communication ports.
Intelligent Sub-BMS Telemetry Integration
Continuously monitors individual cell voltages, temperatures, and state-of-charge, reporting to the central master controller.
More product details
Operating commercial storage at high series voltages (240–864 V) reduces internal current stress, keeping operating temperatures low and conversion efficiency high during continuous heavy industrial cycling.

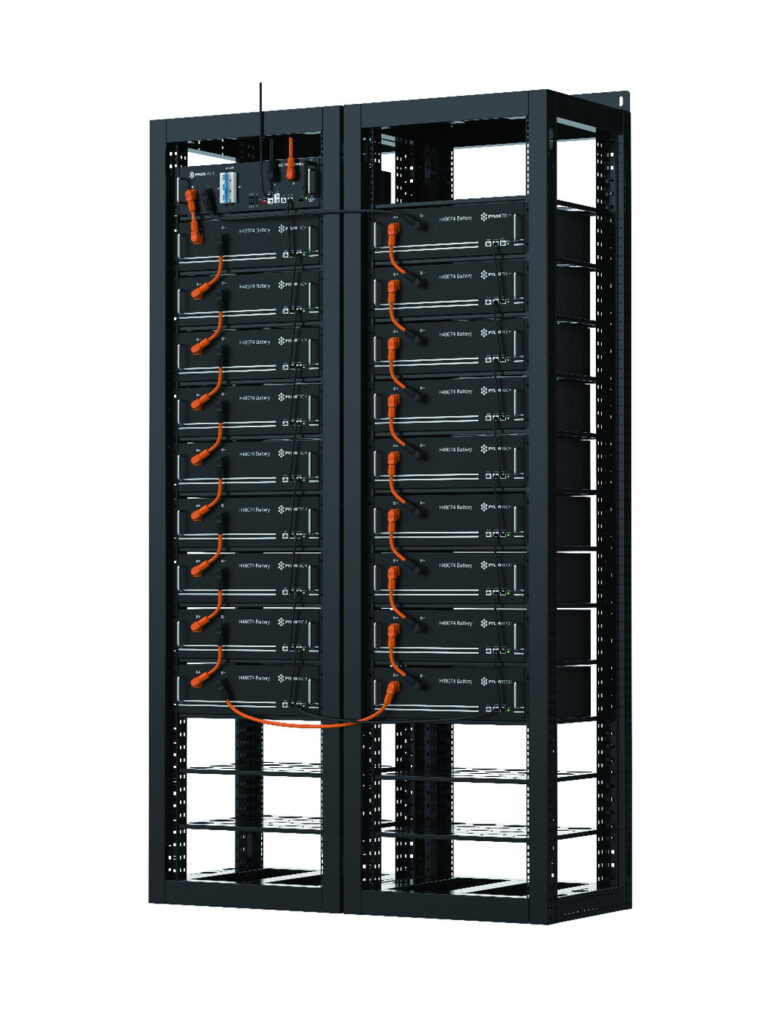

- Connects 5 to 18 modules in series within a single PowerCube rack cabinet.
- Direct high-voltage pairing cuts internal conversion steps, delivering peak round-trip efficiency.
- Front-facing Amphenol high-voltage DC terminals ensure secure, error-free series jumper connections.
Pylontech
Compare different models
Scroll sideways to compare every model.
High thermal stability with module-level sub-BMS monitoring.

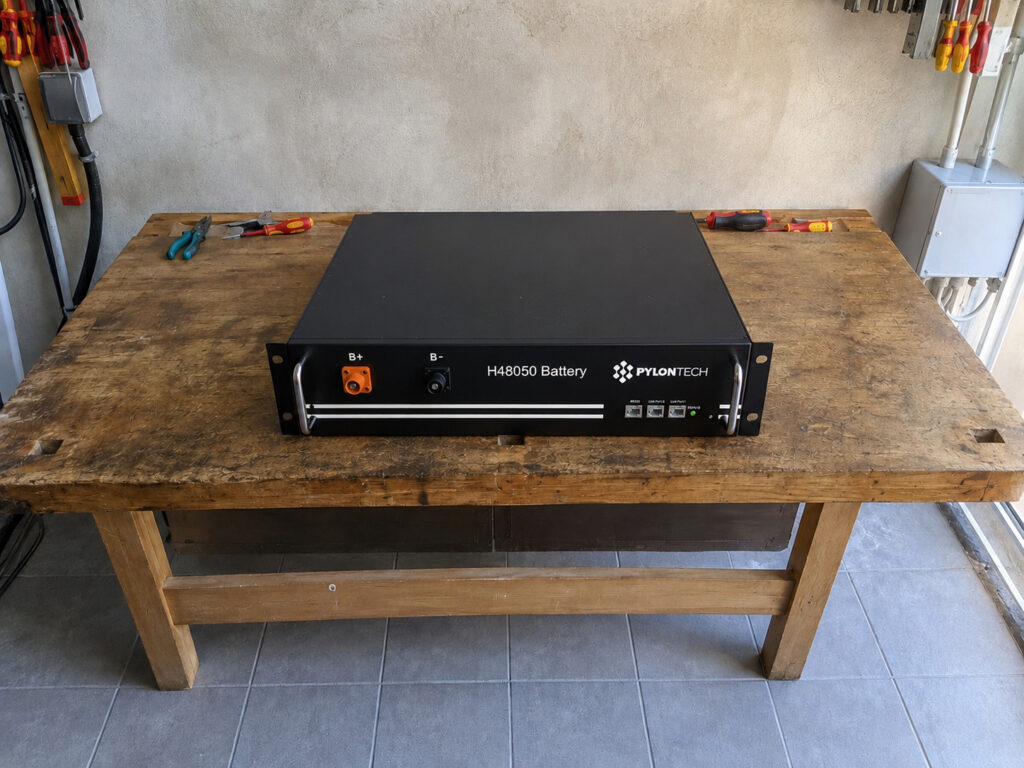

Built with automotive-grade 50 Ah prismatic LFP cells in a 15S series configuration, each module features integrated sub-BMS electronics that report cell telemetry to the SC0500/SC1000 master controller. Integrated cell-level temperature sensors and active voltage balancing prevent localized degradation. Deep 95% depth-of-discharge provides 2.28 kWh of usable energy per module across thousands of daily cycles. Standard 442 × 390 × 100 mm (2U) dimensions slide into 19-inch industrial storage racks.
Sits 100 mm high on the shared rails
The brick shares the 442 by 390 mm footprint. 100 mm of height takes one slot.
Holds 5000 cycles on the V2 rating
The V2 platform rating is 5000 cycles. Fifteen cells in 1P15S fill this housing.
Fits X-series and H-series racks
The same 50 Ah brick slides into an X-series 600 V rack or an H-series 1000 V rack.
Technical data
The fundamental high-voltage building block for series-connected PowerCube-X1, X2, and H1 commercial storage.
2.4 kWh / 50 Ah high-voltage rack module for industrial PowerCube storage systems.
Engineered as the high-voltage series brick for Pylontech PowerCube-X1, X2, and H1 systems, the H48050 delivers 2.40 kWh of LFP storage at 48 V nominal. Installed in 19-inch high-voltage racks, it connects in series up to 18 modules (reaching 864 V nominal) to drive heavy commercial hybrid inverters and industrial PCS units.
- Modular Energy
- 2.40 kWh
- Series Module
- 48.0 V
- Power Throughput
- 25 A / 50 A
- Server Mounting
- 19-Inch Rack
Identity
- Brand
- Pylontech
- Model
- H48050
- Type
- High-voltage LFP battery module, PowerCube series
- Cell technology
- Li-iron (LFP)
- Compatible controllers
- SC0500-40S-V2 / SC0500-100S-V2 / SC1000-100S-V2
Electrical
- Module energy (kWh)
- 2.4
- Module voltage (Vdc)
- 48
- Module capacity (Ah)
- 50
- Charge / discharge current (A)
- 10 standard, 25 normal, 50 max
Mechanical & Environment
- Dimensions (W x D x H mm)
- 442 x 390 x 100
- Weight (kg)
- 24
- Protection class
- IP20
- Cell configuration
- 1P15S (15 cells)
- Operating temperature (C)
- 0 ~ 50 (system charge window per manual)
System & Performance
- Cycle life (V2 system)
- 5000
Project fit
Where this model fits.
Scenarios that show which projects the Pylontech H48050 belongs in, what to verify before quoting, and when another model is the better pick.
Series Battery Stacks for Pylontech PowerCube-X1, X2, and H1 Systems
Commercial installations deploying PowerCube high-voltage storage cabinets requiring 2.4 kWh / 50 Ah series modules.
The original, certified series-connected module designed for PowerCube-X1 and H1 master BMS controllers.
- Confirm this model against the adjacent rating in the same family
Documents
Pylontech PowerCube-X1/X2-V2 operation manual (EN) Pylontech H48050/H48074/H32148/SC0500-100S DatasheetProduct questions
Can the H48050 be used as a low-voltage 48 V parallel battery like the US2000C?
No. H48050 is designed exclusively for high-voltage series connection in PowerCube racks. While both batteries have a nominal voltage of 48 V, the H48050 is engineered with high-voltage insulation and sub-BMS electronics meant to be wired in SERIES (up to 864 V) under a master controller (SC0500/SC1000). For standard 48 V low-voltage parallel systems, use the US2000C.
System components
Required components
Chint DTSU666 smart meter
Item number: DLK-CHINT-DTSU666
grid-side meter needed by most hybrid inverters to enforce export limits; independent of which inverter is paired with this tower.
Optional components
Pylontech FH48074 module
Item number: DLK-PYLONTECH-FH48074
add modules (2-7 per controller, up to 6 parallel strings) to grow capacity within the same tower architecture.
