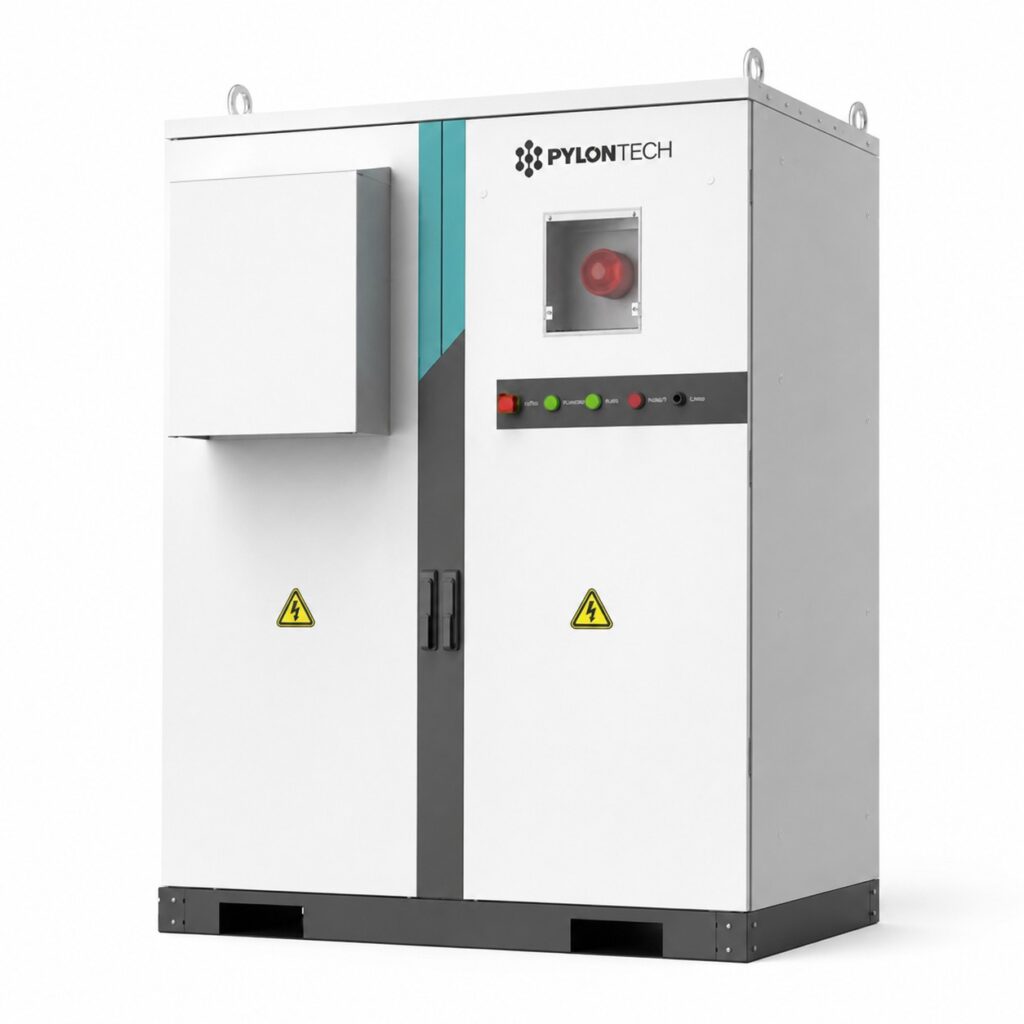

Pylontech OPTIM US A200-OMNI
Pylontech OPTIM US A200-OMNI is the energy-duty all-in-one C&I cabinet on the M5 battery: 203.84 kWh per cabinet at 0.5C, scaling from 203.8 to 1222.8 kWh with 100 to 600 kW of PCS.
- IP55 across the range; 98% single-string depth of discharge on HY/OMNI/L417; cycle life 7,000 to 8,500+.
- HY cabinets (A100-HY, A300-HY) carry an integrated hybrid inverter; OMNI cabinets (A100-OMNI, A200-OMNI, L260-OMNI) carry an integrated PCS for AC-coupled storage.
- L417-BAT is battery-only and needs its own 1,000-2,500 kW external inverter, which Pylontech does not name.
- Parallel up to 5-12 cabinets per string (model-dependent) for multi-MWh scale.
- IP55
- Ingress protection
- Manufacturer
- Pylontech
- Model code
- A200-OMNI
- Item no.
- DLK-PYLONTECH-OPTIMUSA200OMNI
- Delivery
- Delivery included in your Proforma
Plan with A200-OMNI
New system, extension or replacement? Linker Advisor starts from this article and asks only for what is still open — existing model, quantity, postcode, installation date.
Figures transcribed from the manufacturer datasheet on file. Confirm your grid code and configuration with our engineers before ordering.
- GoodWe · SAJ · Pylontech · EcoFlow · Chint paired from the maker’s own lists
- Datasheets on file for every item
- Within 24 h engineering response
- MOQ 1 unit · EU delivery
- Engineering-checked configurations

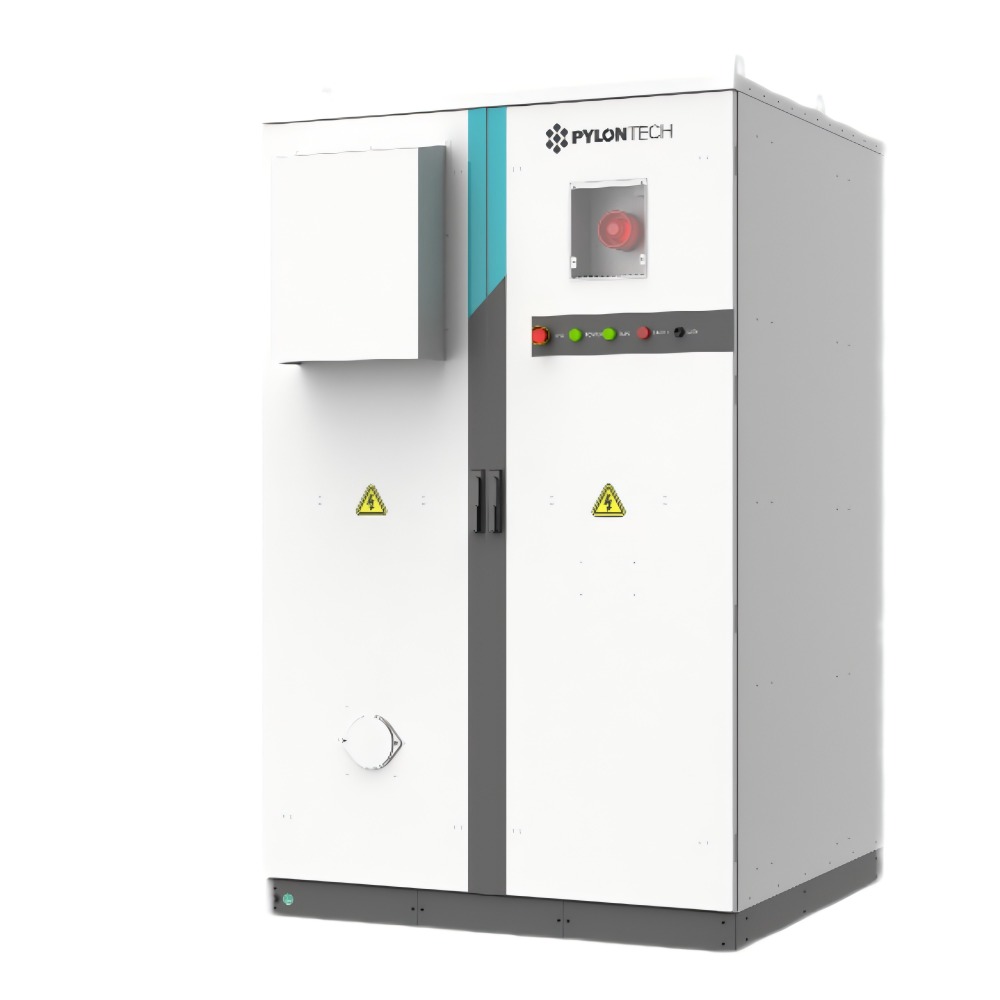

Storage without a re-design.
100 kW per PCS, 1 to 6 PCS (100 ~ 600 kW) of AC-coupled storage drops in behind the existing string inverters - no PV rewiring.

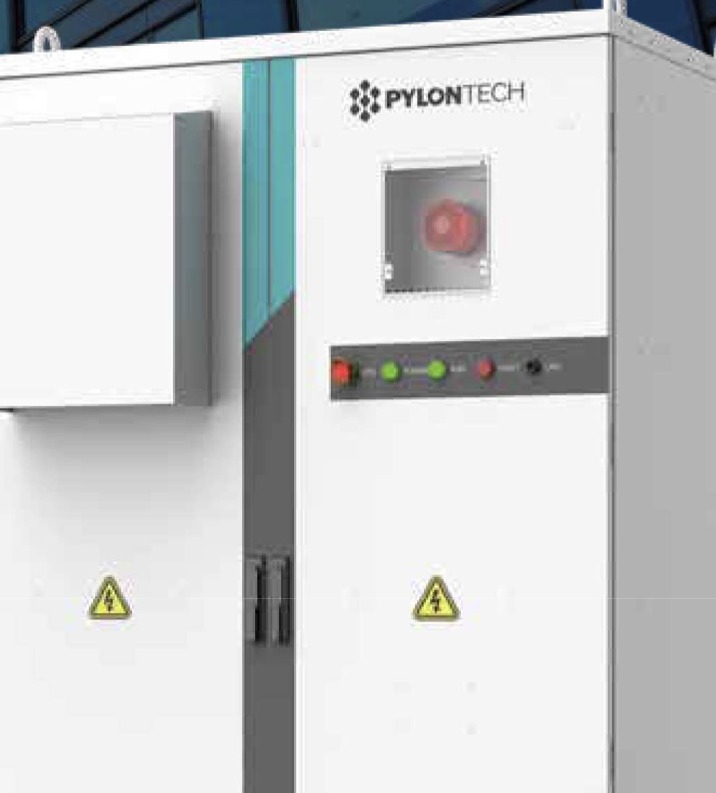

Energy density per pad
203.84 kWh in one 1310 x 1627 mm footprint, 2.8 tons, IP55 outdoors.
Inspect it before you spec it.
Official renders, installation photos and system panels for this model line.
Manufacturer imagery from the official documentation.
Manufacturer/dealer imagery, eye-gated 2026-07-11.
Specifications
Every value exactly as published in the official A200-OMNI documentation.
Documents
Pick the rating
Pylontech family. Same engineering, different size.
Every figure comes straight from the manufacturer's official datasheet.
Configuration 3
All three are AC-coupled LFP cabinets with an integrated PCS; they differ in C-rate and energy per cabinet.
- A100-OMNI, power duty: 108 kWh on the M1C platform at a continuous 1C, so one cabinet delivers its full 100 kW; that is what frequency-response and demand-response programs pay for.
- A200-OMNI, energy duty: 203.84 kWh on the M5-200kWh-1000V platform at 0.5C for load-optimized, AC-coupled storage.
- L260-OMNI: 260 kWh with a 125 kW PCS, liquid cooling and a cycle life above 8,500, aimed at arbitrage, ancillary service, demand response and backup duty.
No. Pylontech documents the DC/AC block as PCS data, not a hybrid inverter, and no PV or MPPT input appears on any OMNI datasheet. The cabinets couple on the AC side.
- PV stays separate: keep PV generation on its own inverters; the OMNI cabinet charges and discharges against the AC bus.
- Closed system: the OPTIM US range has no third-party battery or inverter port.
- Relation to HY models: the OPTIM US HY cabinets (A100-HY, A300-HY) integrate a hybrid inverter stage rather than a PCS; the OMNI line is the AC-coupled variant of the series.
Each model parallels up to six cabinets. Per Pylontech's datasheets:
- A100-OMNI: 100 to 600 kW and 108 to 648 kWh across one to six cabinets, coordinated over Modbus.
- A200-OMNI: 100 kW per PCS with one to six PCS blocks, giving 203.8 to 1,222.8 kWh and up to 600 kW.
- L260-OMNI: one to six cabinets step from 260 to 1,560 kWh with 125 to 750 kW of PCS.
- Arithmetic check: the L260 steps are simple multiples of one cabinet, for example 6 x 260 kWh = 1,560 kWh and 6 x 125 kW = 750 kW.
Availability & compliance 1
The published sets differ per model, so confirm the certificate set for your target market with the quote.
- A100-OMNI: Pylontech lists UN38.3, IEC 62619, IEC 62040-1, CE, UKCA, VDE 2510-50, UL 1973, UL 9540A, UL 9540, IEC 62477-1 and grid connection to EN 50549-1/-2.
- L260-OMNI: IEC 62619, IEC 62040-1, CE, VDE 2510-50, UL 1973 and UL 9540A; its sheet lists no grid-connection codes.
- A200-OMNI: no certificate list appears in the datasheet data we publish for it.
- German grid connection: no VDE-AR-N 4105 entry appears in this family's data, so have the certificate status confirmed in writing before committing a German site.
Installation & wiring 1
Per Pylontech's datasheets, all three are outdoor IP55 cabinets with aerosol fire suppression; cooling and climate limits differ per model.
- Cooling: air cooling on A100-OMNI and A200-OMNI, liquid cooling on L260-OMNI with 2.56 kW consumption.
- Climate: -25 to 45 C on A100, -20 to 55 C on A200, -25 to 50 C on L260; altitude up to 2,000 m on A100 and 3,000 m on A200 and L260.
- Corrosion class: C5 on A100-OMNI, C3 on A200-OMNI, C3 with optional C5 on L260-OMNI; match to coastal exposure.
- Handling: cabinet weights are 2 t, 2.8 t and 2.9 t respectively; plan the foundation and lift accordingly.
- Control: Modbus TCP/IP and RTU on A100 and A200, Ethernet Modbus TCP on L260.
Operation & warranty 1
The figures differ enough between models to move the business case, so quote per model, not per family.
- Round-trip efficiency: 95 percent on A100-OMNI at 0.5C, above 95 percent on L260-OMNI, and 87 percent on A200-OMNI per its transcribed datasheet.
- Cycle life: above 7,000 cycles on A100-OMNI and above 8,500 on L260-OMNI, both at 98 percent single-string depth of discharge.
- Overload: A100-OMNI holds 120 percent for 60 seconds; L260-OMNI is rated 110 percent.
- Duty modes: L260-OMNI covers ancillary service, electricity arbitrage, demand response and backup; A200-OMNI runs AC-coupled, load-optimized operation.
