Description
Eliminating multi-module parallel wiring clutter.

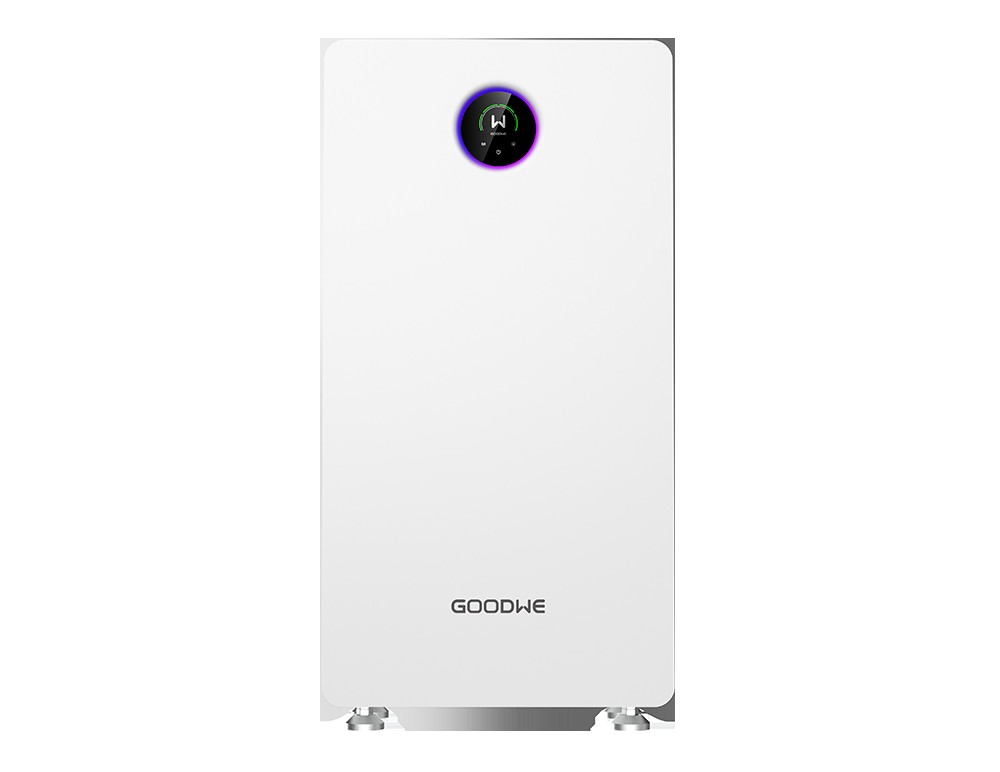

GoodWe Lynx Home A G4 GW16.1-BAT-LV-G10 is an integrated 16.1 kWh low-voltage LFP storage cabinet delivering 14.5 kWh of usable capacity in a single floor-standing enclosure, engineered for large single-phase homes and off-grid lodges.
16.1 kWh High-Capacity Single Unit
Consolidates heavy storage capacity into a single cabinet, eliminating multi-battery wiring harnesses.
Safe 48 V SELV Architecture
Extra-low voltage topology eliminates high-voltage DC hazards and simplifies residential inspection compliance.
High Continuous Power Throughput
Delivers full current to drive high-draw single-phase hybrid and off-grid inverters without throttling.
Integrated Automotive-Grade LFP Cells
Premium cobalt-free cells with multi-level BMS cell balancing, thermal sensors, and circuit isolation.
More product details
Installing 15+ kWh of traditional 48 V storage requires multiple external busbars, heavy copper interconnect cables, and separate communication patch leads. The Lynx Home A consolidates 16.1 kWh into a single internal busbar structure.
- Eliminates external cable clutter and inter-module connection contact resistance.
- Integrated master DC disconnect allows instant, safe physical isolation of the entire 16.1 kWh bank.
- Centralized BMS actively monitors cell voltages, temperatures, and state-of-charge across all internal strings.
Inherent electrical safety for residential living spaces.
Operating under Safety Extra-Low Voltage (SELV) limits below 60 V DC, this cabinet provides high energy capacity with zero high-voltage DC shock risk for installers and homeowners. 16S prismatic LFP cell arrangement delivers a stable 51.2 V nominal DC bus. Pre-configured CAN and RS485 communication protocols for GoodWe 48 V hybrid and off-grid inverters. IP55 rated enclosure certified for operation from -10 °C to +50 °C.
Holds 10,000 cycles on 314 Ah LFP cells
Prismatic lithium iron phosphate cells provide over 10,000 lab-rated cycles with 51.2 V nominal voltage.
Runs from minus 20 to plus 55 C
Internal heating technology protects cold-weather charging while the IP65 casing mounts on floors or walls.
Talks over CAN to low-voltage hybrids
Integrated CAN communication links the internal BMS directly to GoodWe low-voltage inverters without external controllers.
Technical data
Consolidated low-voltage energy storage engineered for multi-day domestic and off-grid autonomy.
16.1 kWh high-capacity 48 V storage in a single integrated floor cabinet.
Purpose-built for large single-phase homes, off-grid lodges, and domestic storage retrofits, the GW16.1-BAT-LV-G10 eliminates the clutter of wiring multiple small 2.4 kWh or 5 kWh batteries in parallel. It packages 16.1 kWh of safe lithium iron phosphate storage into a clean, pre-engineered floor cabinet, delivering high continuous current for domestic appliances and heating systems.
- Nominal Storage
- 16.1 kWh
- SELV Safe Bus
- 48 V / 51.2 V
- Pre-Wired Enclosure
- Single-Unit
- Durable Enclosure
- IP55
Battery
- Cell type / chemistry
- LFP (LiFePO4), 314 Ah rated capacity
- Rated energy
- 16.1 kWh
- Usable energy
- >=14.9 kWh (100% DoD, 0.2P, 25±2 C, beginning of life)
- Nominal voltage / range
- 51.2 V / 45.92-57.76 V (low-voltage)
- Cycle life
- >=10,000 cycles (lab conditions)
Power
- Max. continuous charge / discharge current
- 157 A / 200 A (system)
- Max. input / output power
- 8 kW / 10 kW (derating by temperature and SOC)
- Peak output power
- 16 kW for 15 s
Scalability & Installation
- Parallel scalability
- Up to 30 units (30P) via dual-terminal daisy-chain, no busbar required
- Built-in breaker
- Integratedplus integrated current limiting for fast expansion and auto parallel recovery
- Mounting
- Wall-mounted or floor-mounted; regulating wheels optional
- Dimensions / weight
- <=470 x 895 x 245 mm (without base) / <=122 kg
Environment & Communication
- Temperature range
- Charge 0 to +55 Cdischarge -20 to +55 C · heating technology for reliable operation from -20 C
- Ingress protection / protective class
- IP65 / Class I
- Humidity / altitude
- 5-95% RH / max. 4,000 m
- Communication
- CAN
- Storage
- -20 to +35 C up to 12 months; +35 to +45 C up to 6 months
Project fit
Where this model fits.
Scenarios that show which projects the GoodWe Lynx Home A G4 GW16.1-BAT-LV-G10 (16.1 kWh LFP battery) belongs in, what to verify before quoting, and when another model is the better pick.
Large Single-Phase Residential & Rural Properties (6–10 kWp Solar)
Large single-phase homes or rural estates demanding 12–15 kWh of overnight energy storage to bridge evening cooking, lighting, and domestic baseline loads.
Delivers 14.5 kWh usable storage in one pre-assembled cabinet, avoiding the labor and complexity of wall-mounting multiple separate battery bricks.
- Confirm this model against the adjacent rating in the same family
Documents
GoodWe Lynx-A G4 16kWh Datasheet (EN)Product questions
Can this 16.1 kWh Lynx Home A battery be connected to a GoodWe ET 3-phase inverter?
No. Designed for 48 V low-voltage inverters only. The GW16.1-BAT-LV-G10 operates at 51.2 V nominal (48 V low-voltage class). GoodWe ET three-phase hybrid inverters require a minimum DC battery voltage of 180 V. For three-phase systems, choose GoodWe Lynx Home F (high-voltage series). The Lynx Home A is designed for 48 V single-phase hybrid and off-grid inverters (such as GoodWe ES, EM, SBP, or Victron systems).
What are the physical dimensions and weight of this cabinet?
Floor-standing cabinet; approx. 145 kg. The unit measures approx. 600 mm wide × 800 mm high × 380 mm deep and weighs approx. 145 kg. It is designed to sit directly on level concrete garage or utility room floors with heavy-duty leveling feet.
System components
Recommended components
Additional GoodWe Lynx A G4 (GW16.1-BAT-LV-G10) units
Item number: DLK-GOODWE-LYNXA-G4
Capacity and power grow by paralleling up to 30 units over the dual-terminal daisy-chain, no busbar needed. Per GoodWe's warranty, expand within one year of the production date or new units are limited to the old units' remaining capacity.
Optional components
GoodWe GM3000 three-phase smart meter
Item number: DLK-GOODWE-GM3000
The paired GoodWe hybrid inverter needs a grid-point meter for self-consumption control and export limiting; usually already part of the inverter package, confirm before adding.
