Inverter Class
Rated output power5000 W
Phase typeSingle-phase
Product roleHybrid inverter
Deployment focusResidential storage and backup
Product Detail

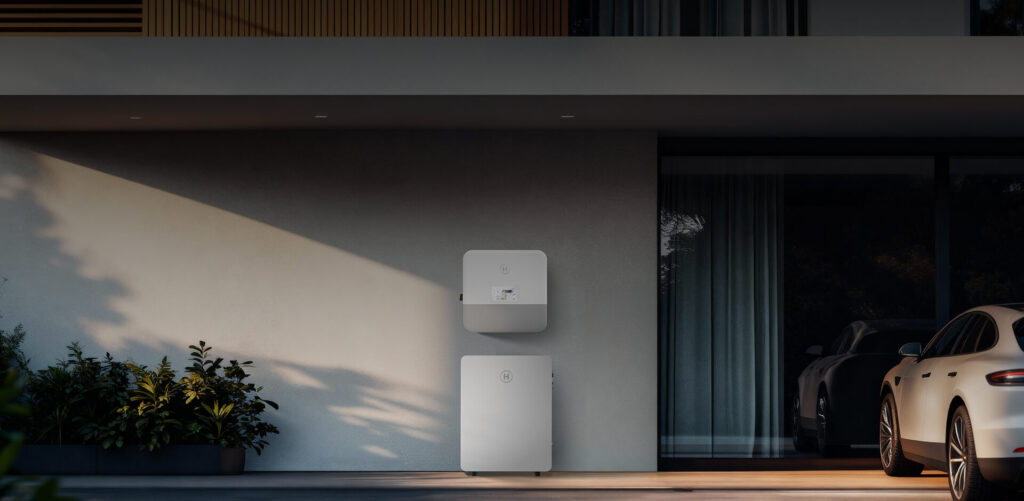

TerraVolt H5
Mainstream single-phase hybrid inverter class.Log in for pricing or Request project quote.
Hybrid InvertersSeries HLogin for pricing
Log in for pricing or request a project quote.
Specifications & Gallery
Technical data and retained product media
PV Input
Recommended max PV power10000 W
Max PV input voltage550 V
MPPT trackers2 count
Max MPPT current18/18 A
Battery and Backup
Battery typeLi-ion / Lead-acid
Battery voltage range40-60 V
Max charge/discharge current120/120 A
Backup outputSupported
Installation and Monitoring
Dimensions506 x 495 x 99 mm
Weight17 kg
MountingWall-mounted
Monitoring pathwayRS485 with optional Wi-Fi / Ethernet / 4G stack
Operating Envelope
Operating temperature-25 to +65 (>45 derating) C
Relative humidity0-95 %
Protection degreeIP66
Noise<35 dB
Feature Proof
Product advantages from the retained ACF feature cards
Dual MPPT Solar Input
The primary H5 reference set documents a dual-MPPT layout with high-current solar input for flexible single-phase PV string planning.
Configurable Operating Modes
Peak Shaving and configurable 24-hour TOU schedules are documented in the primary reference materials for the approved H5 product basis.
Smart Energy Coordination
The primary reference set documents energy-management support for generator, heat pump, and smart load coordination.
Low-Voltage Battery Hybrid Platform
The approved TerraVolt H5 evidence set supports a low-voltage hybrid inverter position for residential storage and backup pairings.
Remote Monitoring Pathway

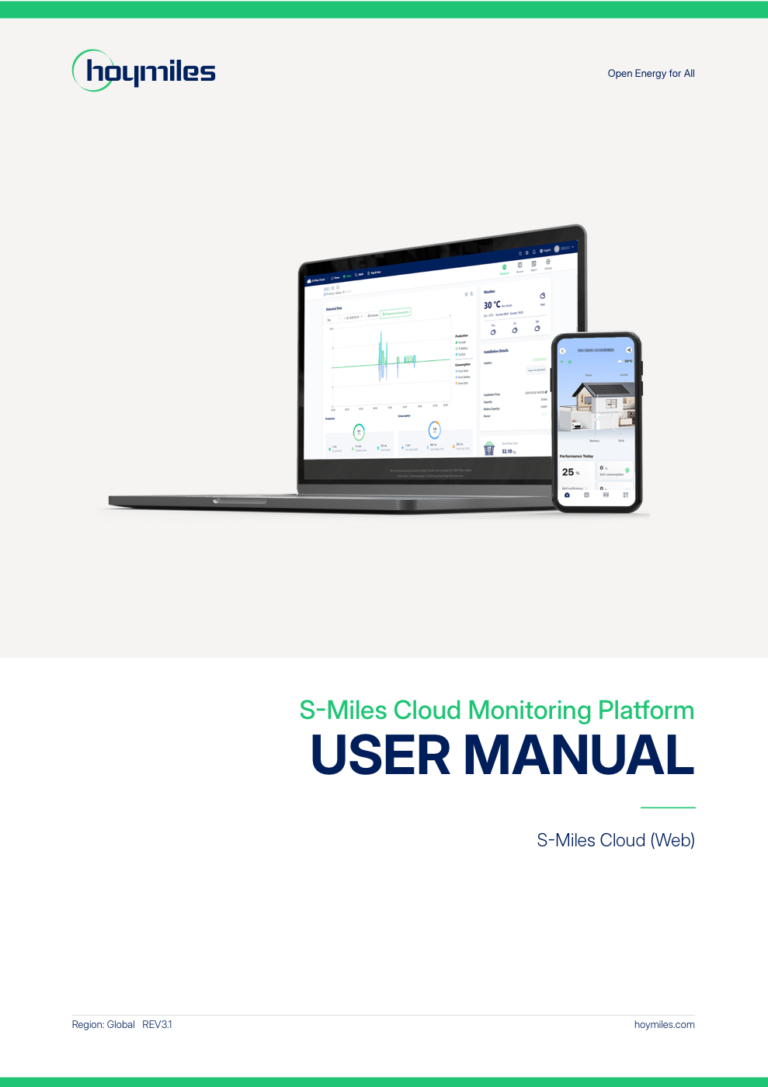

Monitoring references document remote visibility through the S-Miles Cloud platform and DTU gateway options used in the TerraVolt-supported monitoring stack.
Compact Wall-Mounted Format
The core source set documents a wall-mounted single-phase form factor intended for space-conscious residential installations.
Application Fit
Where this product fits in a project review
Residential Self-Consumption
Suitable for daily residential solar storage workflows where dual MPPT input and hybrid battery operation are needed for self-consumption and TOU-aware energy planning.
Backup-Ready Home Power
The approved H5 source set documents backup-capable hybrid operation for home continuity use cases that pair inverter and low-voltage battery storage.
Installer-Led Smart Load Projects
The primary reference set documents configurable operating modes together with generator, heat pump, and smart load coordination, making the product suitable for installer-managed residential system design.
Remote Monitoring and Service
Monitoring-related Hoymiles references document remote visibility through DTU gateway options and the S-Miles Cloud platform for system follow-up and service access.
Trust Proof Cinema
Supporting resources retained from the legacy product record
The old product template placed related resources as the dark proof break before downloads and FAQ.
Central hub for FAQs, manuals, and product documentation access.
Support route for monitoring setup, platform access, and remote service questions.
Support route for compatibility and integration follow-up.
Is TerraVolt H5 a single-phase hybrid inverter?
Yes. TerraVolt H5 is positioned as a 5 kW-class single-phase hybrid inverter inside the approved TerraVolt product catalog.
What battery types are supported?
The primary H5 reference set documents support for low-voltage Li-ion and lead-acid battery classes. Final project pairing should still be confirmed during detailed system design.
Does TerraVolt H5 support remote monitoring?
Yes. The approved evidence set includes Hoymiles DTU and S-Miles Cloud references for remote visibility, alert handling, and ongoing system follow-up.
Can TerraVolt H5 be used for backup-oriented projects?
Yes. The approved source set documents backup-capable hybrid operation, making the product suitable for backup-oriented residential designs when paired with the right battery configuration.
What documents are available for review?

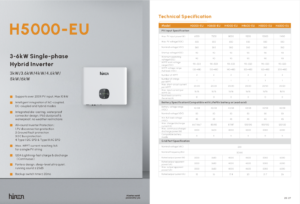

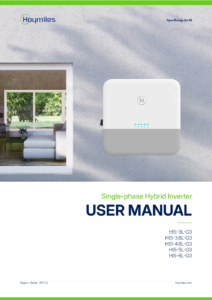

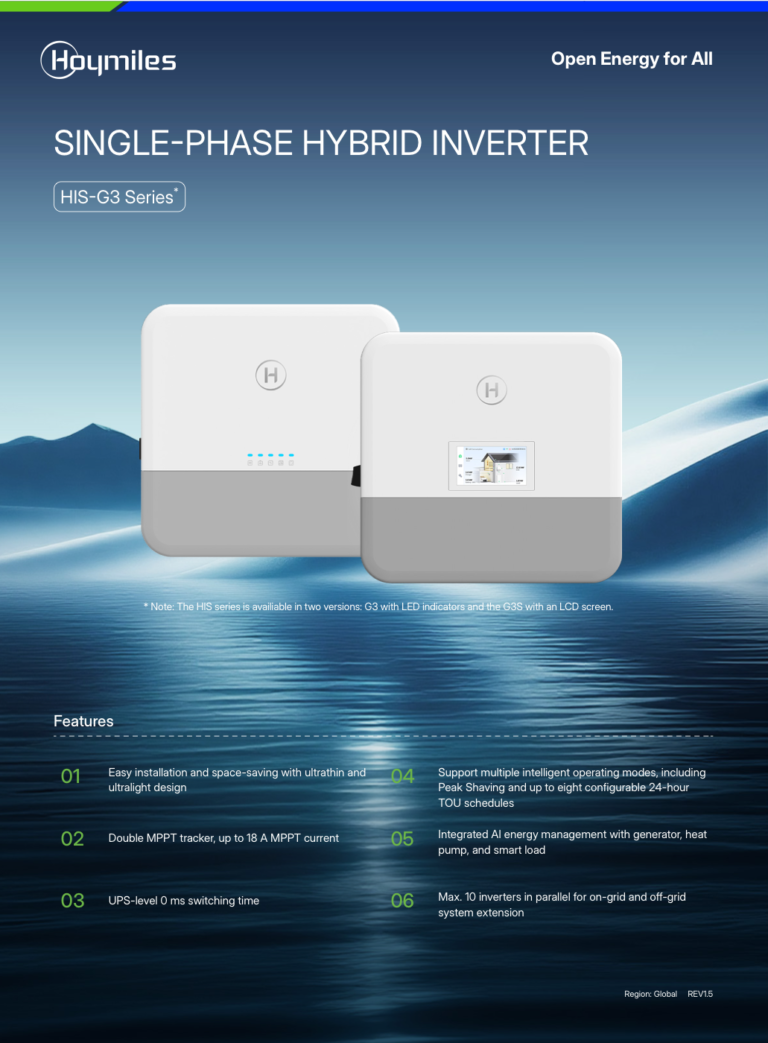

This product entry includes datasheet and manual downloads from the approved H5 evidence pack so installers and reviewers can cross-check technical details inside the current TerraVolt runtime.
