Battery Class
Battery system typeRechargeable Li-ion battery system
Product roleLow-voltage battery
Nominal capacity5 kWh
Series variantsB5000 / B5000-W
Product Detail

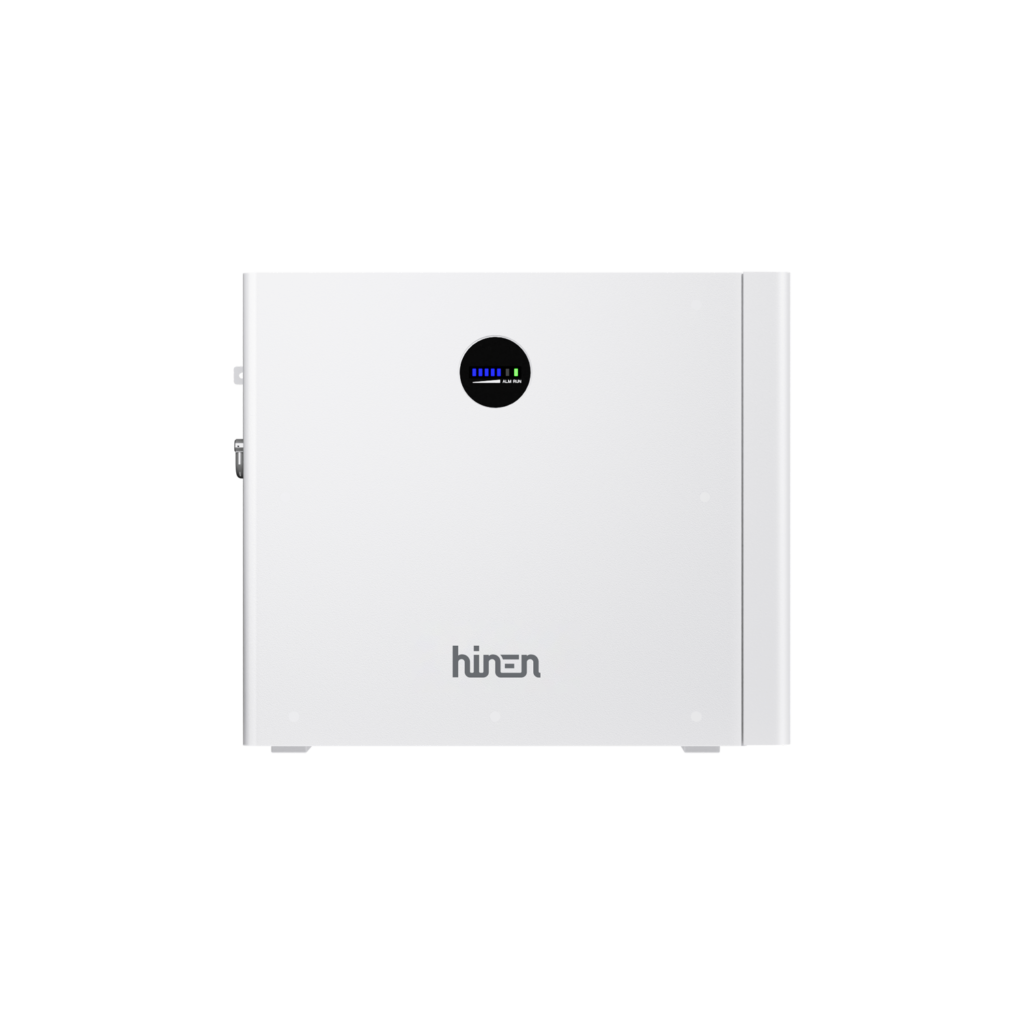

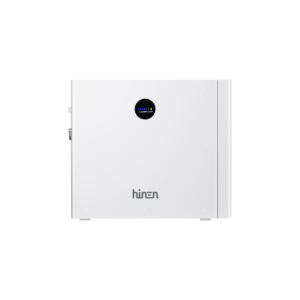

TerraVolt B5
5 kWh-class low-voltage battery storage.Log in for pricing or Request project quote.
Battery StorageSeries BLogin for pricing
Log in for pricing or request a project quote.
Specifications & Gallery
Technical data and retained product media
Scalability
Expandable system capacity5-50 kWh
Supported module combinationsx1-x10 modules
Charge / discharge rate1 C
Deployment focusResidential storage expansion
Electrical Reference
Max continuous charge current120 A
Max continuous discharge current120 A
End of discharge voltage44.2 V
Constant charge voltage54.4 V
Safety and Installation
Protection strategy5-layer battery protection
Ingress protectionIP65
Operating temperature-20 to 55 C
Shutdown methodOne-touch shutdown
Compatibility and Monitoring
Declared compatible inverter modelsH3000-EU to H6000-EU
Key live pairing referenceH5000-EU
Monitoring pathwayVisible energy tracking
Remote update supportHinen APP ecosystem
Feature Proof
Product advantages from the retained ACF feature cards
1C Charge and Discharge Rate
Product-page and AU download references describe 1C charge/discharge capability for the B5000/B5000-W platform.
Expandable 5-50 kWh Platform
Manufacturer references present the battery family as a future-proof 5-50 kWh expansion path for residential storage sizing.
IP65 Harsh-Environment Rating
The manufacturer product page explicitly documents IP65 protection for harsher install environments.
Five-Layer Safety Stack
Manufacturer product-page evidence lists full-coverage temperature detection, BMS protection, physical short-circuit protection, internal aerosol fire extinguisher, and a decompression valve.
Declared H5000-EU Pairing

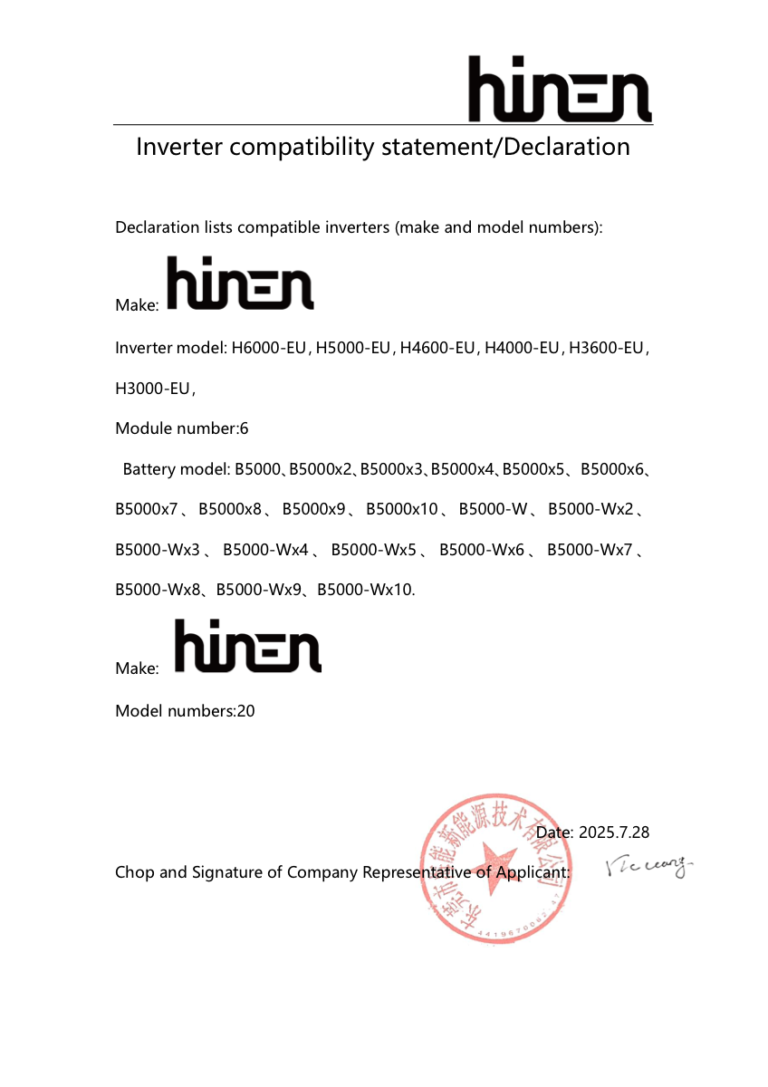

The approved compatibility statement lists H5000-EU among the declared compatible Hinen hybrid inverter models for the B5000 battery family.
Visible Energy Tracking Path
Manufacturer product and accessory references describe visible energy tracking, remote upgrade, and compatible WiFi logger/module support across the Hinen monitoring path.
Application Fit
Where this product fits in a project review
Residential Self-Consumption Expansion
Suitable for residential energy storage expansion where a 5 kWh low-voltage battery block is added to increase self-consumption, daily load shifting, and stored solar usage.
Backup-Ready Home Storage
The approved B5 evidence pack includes a compatibility statement that lists H5000-EU among the declared inverter pairings for backup-oriented residential storage design.
Installer-Led Capacity Staging
Manufacturer product and download references position the B5000/B5000-W platform as an expandable battery path for installers planning staged capacity growth.
Remote Visibility and Service Follow-Up
Approved Hinen monitoring references connect the battery system to app-visible energy tracking and compatible WiFi accessories for setup and ongoing service follow-up.
Trust Proof Cinema
Supporting resources retained from the legacy product record
The old product template placed related resources as the dark proof break before downloads and FAQ.
Central hub for FAQs, manuals, and product documentation access.
Support route for monitoring setup, accessory configuration, and remote service follow-up.
Support route for inverter pairing, battery combinations, and compatibility review.
Is TerraVolt B5 a low-voltage battery storage product?
Yes. TerraVolt B5 is positioned as a 5 kWh-class low-voltage battery storage product inside the approved TerraVolt battery catalog.
Can TerraVolt B5 pair with TerraVolt H5?
The current live TerraVolt mapping links B5 to H5 as the closest approved hybrid pairing, and the approved B5000 compatibility statement includes H5000-EU in its declared inverter list.
Is the battery expandable?
Yes. Manufacturer references present the B5000/B5000-W platform as expandable from 5 kWh to 50 kWh and list module combinations from x1 through x10 in the compatibility statement.
Does TerraVolt B5 support monitoring and remote update workflows?

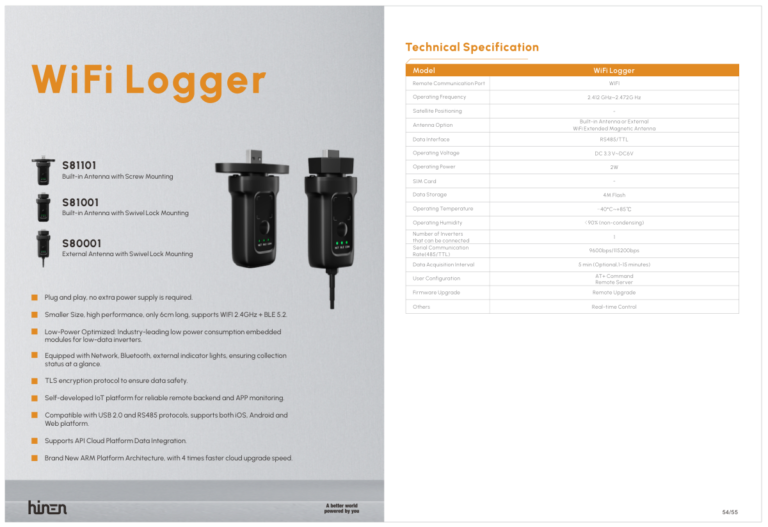

Manufacturer product evidence mentions visible energy tracking and remote upgrade on the Hinen app pathway, with compatible WiFi Logger and WiFi Module references surfaced on the AU download page.
What technical documents are included in this product entry?

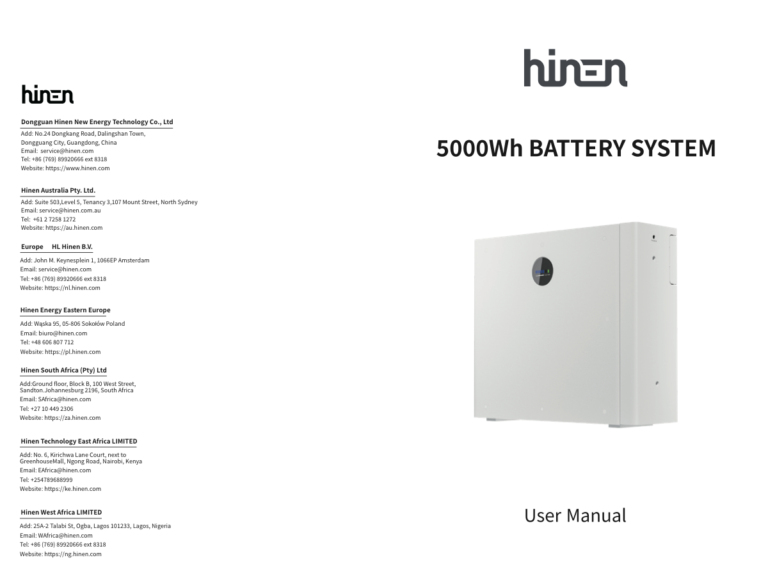

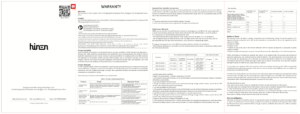

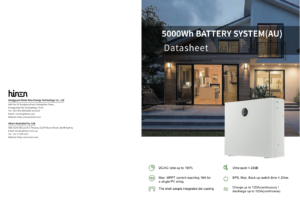

This product entry includes the manufacturer datasheet, compatibility statement, user manual, MSDS, and warranty card so installers and reviewers can cross-check source-backed details inside the current TerraVolt runtime.
